XNC430 - fully automatic vision measuring machine
XOPTRON Achieves Accurate Vision Measurement By Integrating Its Unparalleled Optical Superiority With Precise Mechanical Components.
Designed For Excellence
Professional Grade Vision Measuring Machine For Research And Laboratory Applications.Impeccable Optical Quality
XOPTRON XNC vision measuring system is designed to achieve accurate measurement of the most complicated and intricate workpieces with its dedicated continuous zoom lens and multiple quadrant illumination system. XNC is the answer when efficiency and product quality are crucial, it helps to achieve the optimum reliability
> Professional Industrial Applications
Designed for various industries – steel mill, automotive, electronics, semiconductor, medical equipment, material testing etc.Every optic has been critically designed to complement each other in performing precision tasks.
Xoptron microscope is designed to allow true-to-life digital reproduction for accurate analysis works.
Superior optical design guarantees true to life image reproduction.
High modularity achieved with group technology minimises price-performance ratio.

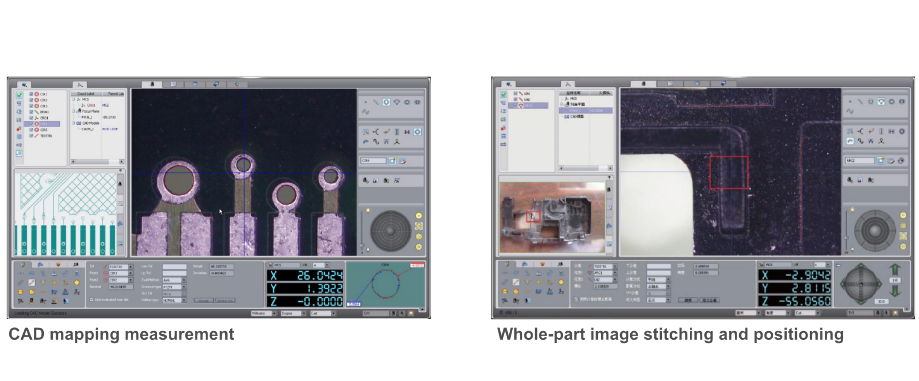

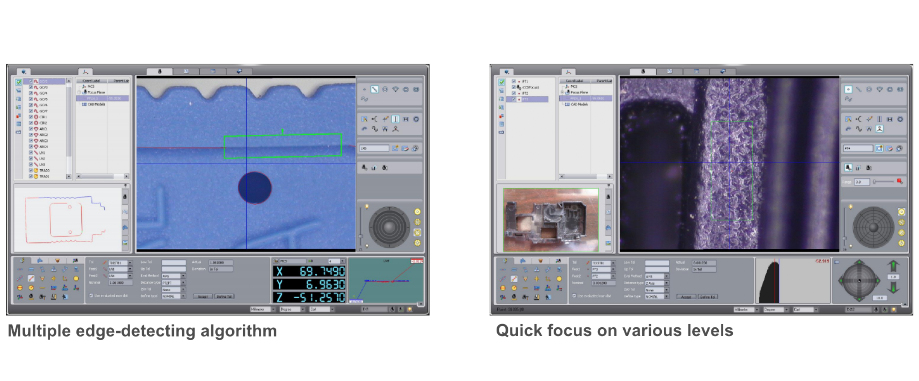

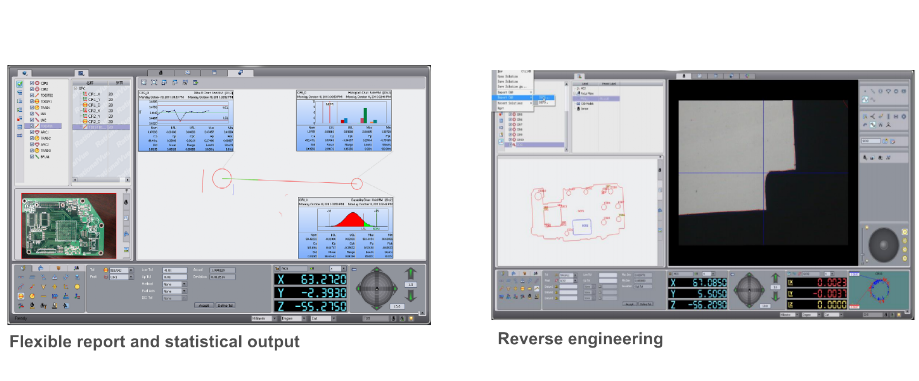

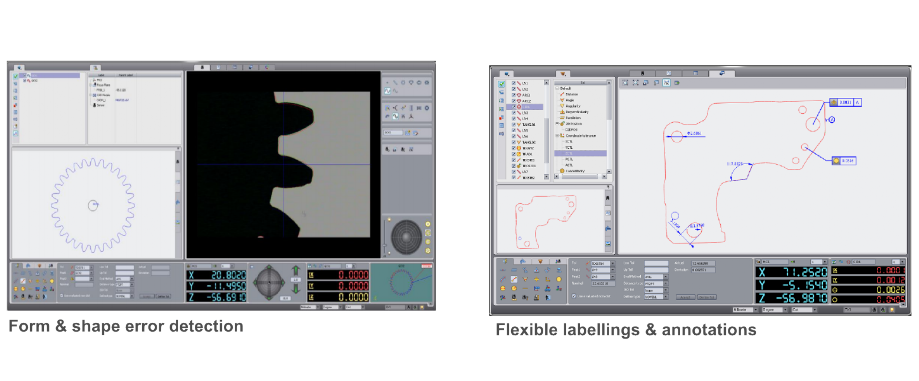

Functions
Specifications
Model
XNC430st3.0
Lens
Manual high resolution optic lens
Camera
1.3 mb 20 fps
Optical ruler resolution
0.5 um
X/Y axis precision
3+L/250 um
X/Y axis repeatability
3 um
Options
Touch probe
Workstage, mm
X440 x Y340
Measurement range, mm
X400 x Y300 x Z150
Magnification
0.7x - 4.5x to achieve image magnification of 28x - 145x
Sensor
High sensitivity CCD
Transmission
Ground screw rod linear guide
Operation mode
Automatic
Light
Top white light with quadrants zone control
Bottom white with colour option
Programmable intensity and zone control
Workstage material
High strength aluminum alloy
Column material
High precision granite
Motor
Servo motor
Motor control mode
Intelligent mouse or joystick
Traverse speed
X 150mm/s; Y 150mm/s; Z 100mm/s
Measuring speed
120mm/s
Workpiece capacity
Max 30kg
Working environment
Power 110V-220V 50/60Hz; Temperature 15-25degree; Humidity 45-75%
Machine size, mm
960 x 740 x 970
Machine weight
200kg
Model
XNC430hs1.5
Lens
Automated high resolution optic lens
Camera
5 mb 30 fps
Optical ruler resolution
0.1 um
X/Y axis precision
2+L/250 um
X/Y axis repeatability
1.5 um
Options
Touch probe

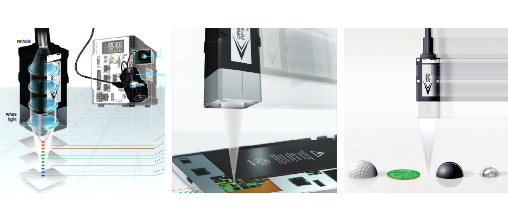

White light confocal 3D
