Xoptron X80 - designed for versatility
Highly Flexible All-Purpose Optical Microscopy System for Research & Laboratory Applications
Countless Possibilities
From the early design stage, X80 system was conceived in a modular form to allow future upgrading and augmentation.
The ultimate aim is to allow the system to be adopted by wide range of applications - industrial, material science, life
science, natural resources, semiconductors, minerals, LCD, fluorescent etc.
> Precise Optical Design
Every module has been critically designed to complement each other in performing precision tasks
Every module has been critically designed to complement each other in performing precision tasks
> Digital Adaptability
X80 is designed to allow true-to-life digital reproduction for accurate standard-compliant analysis (ASTM, ISO).
> Flexible & Customisable
Each Module is Designed with Adaptability for Highest Flexibility and Customisation
> No Compromise on Optical Performance
Superior Optical Design Guarantees True to Life Image Reproduction
> Price-Performance Guaranteed
High Modularity Achieved with Group Technology Minimises Price-Performance Ratio
> All-Purpose Design Platform
Industrial, metallurgical, biological, petrography, medicine, forensic and the list goes on..
Specifications
Model
X80-series
Body
Plan achromatic 2x, 4x, 10x, 20x, 40x, 60x & 100x oil
advanced polarizing, dark field and fluorescent
Microscope type
High-power optical microscope
Upright body with Y frame structure
Field of applications
Industrial/Material science, life science, petrography & minerals, fluorescent etc.
Optical system
Colour-corrected infinity optical system (CIOS)
Optical magnification range
20x - 1000x
Infinity objective lens range
Long working distance plan achromatic for industrial/material
5x, 10x, 20x (4.0mm), 50x (7.9mm) & 100x dry (2.1mm)
Plan strain-free polarizing 4x, 10x, 20x, 40x and 60x

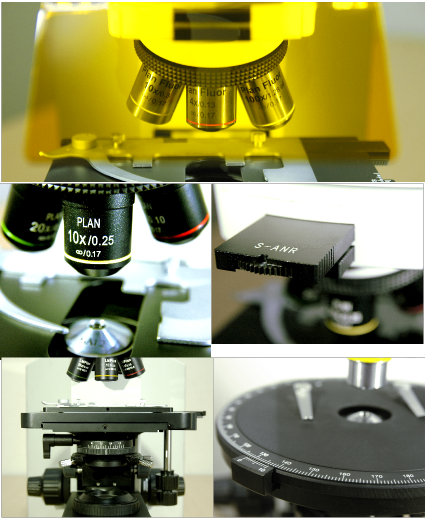

Plan semi-apochromatic 4x, 10x, 20x, 40x & 100x oil
Plan phase contrast 10x, 20x, 40x & 100x oil
Available contrast methods
Bright field, simple polarizing, oblique view, metallurgical tint, phase contrast,
advanced polarizing, dark field and fluorescent
Nosepiece
Backward
Eyepiece
Wide field 10x (FN 22 mm), 15x (FN 16 mm)
View head
Incline 30o
Interpupilary distance
54 - 75 mm
Diopte
+5 / -5
Photoport
Binocular
C-mount
Plan focusable lens (0.5x, 0.65x and 1.0x)
Intermediate
Bertrand lens, precise analyser and compensators (λ, λ/4 & quartz wedge)
Stage
75 x 145 mm high resistant mechanical stage (76 x 42 mm travel range)
160mm circular graphite coated 360o rotating stage
Attachment
360o rotating attachment and XY attachment
Condenser
Swing-out N.A. 1.2 achromatic condenser
Illumination
Precentered single 5W LED (long life)
Filterless consistent white colour light
Focus drive
Coaxial coarse and fine focus system (28mm / rev)
Tension adjustable with upper limit
Maximum specimen height
80 mm
Aperture diaphragm
Adjustable to control focal depth
Field diaphragm
Adjustable. With XY positioner
