X50 series - designed for performance
Essential Upright Optical Microscope For Routine Laboratory Applications.
Compact and Robust
X50 upright microscope offers essential brightfield and simple polarizing observation methods for common industrial applications. This robust and attractively priced microscopes is ergonomic to reduce fatigue during long hours operation. Its compactness provides more working space to user and ensures work safety.> Common Industrial Applications
Designed for various industries – steel mill, automotive, electronics, semiconductor, medical equipment, material testing etc.Every optic has been critically designed to complement each other in performing precision tasks
Xoptron microscope is designed to allow true-to-life digital reproduction for accurate analysis works.
Superior optical design guarantees true to life image reproduction
High modularity achieved with group technology minimises price-performance ratio
Specifications
Model
X50 Pol
Microscope type
Polarizing Microscope
Objectives
Colour corrected infinity plan strain-free objectives
4x, 10x, 40x (s) and 60x (s)
Optical magnification
40x - 600x
Observation tube
Binocular or Trinocular
Eyepiece
10x/18mm
stage
Diameter 160mm circular 360o rotatable at 1o increments
Wear and corrosion resistant
Illumination
Long-life single 3W LED with intensity control (pre-centered)
Built-in Koehler illuminator
Illumination colour
High brightness consistent white colour light
(filterless)

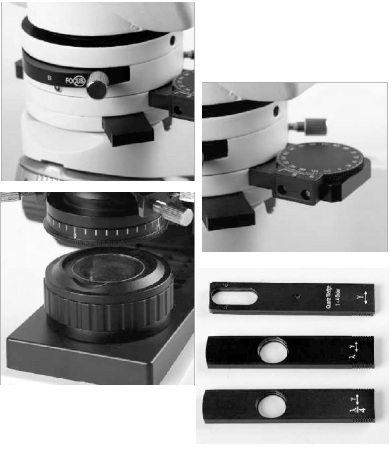

Intermediate tube
90o rotary built-in analyser with Bertrand lens and slots
Polarizer
360o rotatable
Analyser
360o rotatable
Compensator
Tint plate, retardation plate & quartz wedge
