X100 series - designed for excellence
Professional Grade Upright Optical Microscope For Research And Laboratory Applications.Impeccable Optical Quality
X100 upright microscope offers full range of metallurgical observation methods – brightfield, darkfield, polarization and DIC. Its high quality optics deliver high color reproducibility and is designed with excellent ergonomics for comfortable operation that minimize fatigue during long working hours.> Professional Industrial Applications
Designed for various industries – steel mill, automotive, electronics, semiconductor, medical equipment, material testing etc.
Every optic has been critically designed to complement each other in performing precision tasks
> Digital Adaptability
Xoptron microscope is designed to allow true-to-life digital reproduction for accurate analysis works.
> No Compromise on Optical Performance
Superior optical design guarantees true to life image reproduction
> Price-Performance Guaranteed
High modularity achieved with group technology minimises price-performance ratio

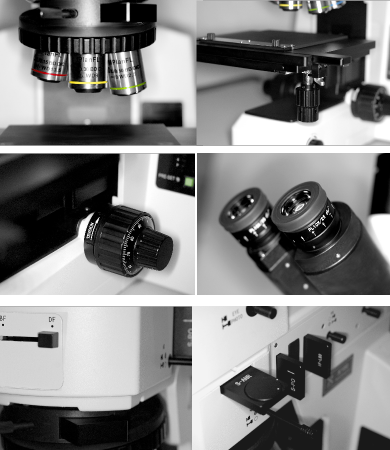

Specifications
Model
X100-series
Microscope type
High-power optical microscope
Body
Upright body with T frame structure
Field of applications
Industrial, material science (microstructure), electronics, semiconductor, medical
Optical system
Colour-corrected infinity optical system (CIOS)
Optical magnification range (all infinity types)
Infinity plan semi-apochromatic BF DF DIC
5x, 10x, 20x, 50x & 100x (dry)
Available contrast methods
Bright field, dark field, simple polarizing & DIC
Nosepiece
Backward sextuple and septuple
Eyepiece
Extra-wide field 10x (FN 25 mm) and 10x (FN 26.5 mm)
View head
Incline 30o
Interpupilary distance
50 - 76 mm
Diopter
+5 / -5
Photoport
Binocular or Trinocular
Stage
4-inch high resistant mechanical stage
100 x 100 mm travel range
Illumination
Precentered 100W LED (long life)
Focus drive
Coaxial coarse and fine focus system (25mm / rev)
Accuracy 1 µm
Tension adjustable with upper limit
Maximum specimen height
50 mm
